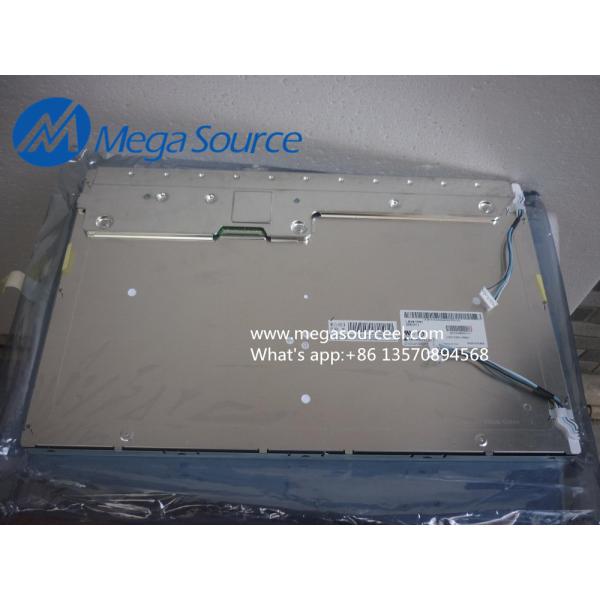

SAMSUNG 24inch LTM240M2-L03 LCD Panel

Place of Origin : Japan

Brand Name : SAMSUNG

Certification : RoHS Compliant

Model Number : LTM240M2-L03

MOQ : 1 Pcs

Price : Pls Contact sales team

Packaging Details : MODULE

Delivery Time : stock

Payment Terms : T/T , Paypal, Western Union ,Escrow etc.

Supply Ability : 1000

Panel Model : LTM240M2-L03

Panel Brand : SAMSUNG

Descrition : a-Si TFT-LCD ,24.0 inch, 1920×1200

Panel Type : a-Si TFT-LCD

Contact Now

SAMSUNG 24inch LTM240M2-L03 LCD Panel

Specification for LTM240M2-L03:

LTM240M2-L03 Basic Information

Panel Model

LTM240M2-L03

Panel Brand

SAMSUNG

Descrition

a-Si TFT-LCD ,24.0 inch, 1920×1200

Panel Type

a-Si TFT-LCD

Operating Temperature

0 ~ 50 °C

Storage Temperature

-20 ~ 60 °C

LTM240M2-L03 Mechanical Features

Dot Resolution

1920(RGB)×1200 (WUXGA)

Pixel Configuration

RGB Vertical Stripe

Pixel Density

94 PPI

Aspect Ratio

16:10 (H:V)

Form Factor

Flat Rectangle Display

Dot Pitch

0.090×0.270 mm (H×V)

Pixel Pitch

0.270×0.270 mm (H×V)

Weight

3.25Kgs (Max.)

Surface

Hard coating (3H)

Active Area

518.4×324 mm (H×V)

Landscape or Portrait

Landscape type

Touch Panel

Without

LTM240M2-L03 Optical Features

Display Mode

S-PVA, Normally Black, Transmissive

Contrast Ratio

1000 : 1 (Typ.) (Transmissive)

Display Color

16.7M (8-bit)

Color Gamut

72% NTSC (CIE1931)

Response Time

16 (Typ.)(Tr+Td); 6 (Typ.)(G to G)

Viewing Angle

89/89/89/89 (Typ.)(CR≥10) (L/R/U/D)

Viewing Direction

Symmetry

White color Chromaticity

Wx:0.313; Wy:0.329

White Variation

1.33 (Max.)(9 points)

Sunlight Readable

N

LTM240M2-L03 Electronics Feature

Vertical Frequency

60Hz

Reverse Scan

No

LTM240M2-L03 Backlight System

Lamp Position

Direct light type

Lamp Type

CCFL

Lamp Voltage

1780V (Typ.)

Lamp Current

5.5/6.0/7.0mA (Min./Typ./Max.)

Lamp Operating Frequency

40/60KHz (Min./Max.)

Lamp Startup Voltage

2360/2950V (Max.)(Ta=+25/0℃)

Interface Type

Connector

Lamp Driver Board

No

LTM240M2-L03 Signal Interface

Signal Category

LVDS

Signal Class

LVDS (2 ch, 8-bit)

Input Voltage for Panel

5.0V (Typ.)

Interface Type

Connector

Signal Interface

UJU - IS100-L30O-C23, Pitch:1.0 mm, Pin:30 pins
